The Importance of Compression Ratios and how to Measure Them

Since race pistons in domestic V-8 engines move up and down in excess of 100 times per second, replacing them is a normal part of a racer’s routine. NHRA Top Fuel and Funny Car teams replace them after every race pass and every second qualifying pass. Pro Stock teams replace them after every 40 passes approximately, and weekend warriors replace them every 12 to 18 months, sooner if their engines are nitrous-assisted. At piston replacement time, questions of spec changes usually arise, especially the topic of compression ratios.

Gibtec Piston’s Rob Giebas explains, “An engine’s compression ratio is calculated by comparing two volumes in the cylinder. One is the swept volume plus the clearance volume. The other is the clearance volume only. The larger the first volume and the smaller the second, the higher the engine’s compression ratio”

The inability to measure the block height and the piston and chamber volumes are the two main impediments to achieving accurate compression ratios. The most accurate method for measuring piston and chamber volumes is to fill the spaces with a colored liquid administered through a calibrated burette.

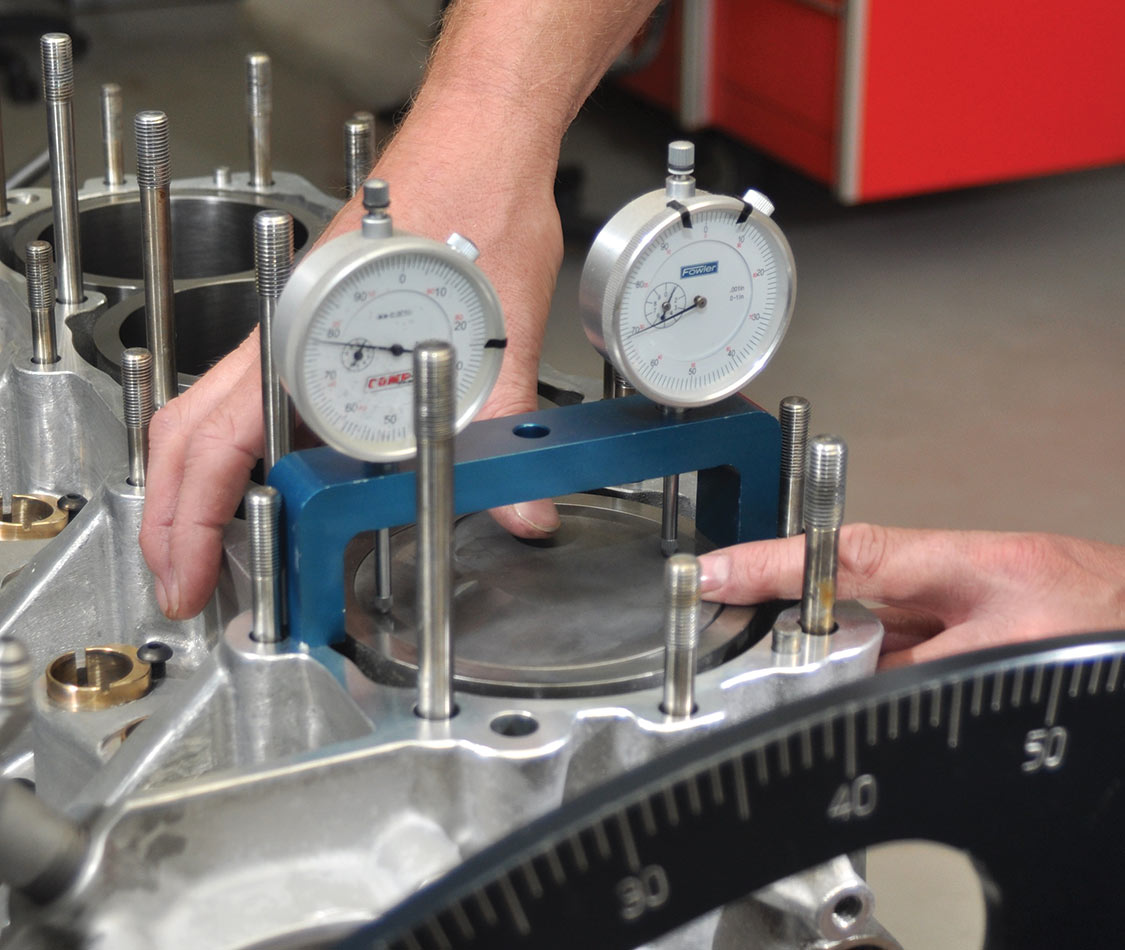

To measure piston volume, first use a degree wheel to attain two objectives: set the piston (complete with rings and attached to the crankshaft with your longest rod) at top dead center and square the piston with the deck.

Swept volume, also called displacement, is the volume a piston displaces in a cylinder as it moves from its lowest point (bottom dead center) to its highest point (top dead center). Displacement does not include the clearance volume, which is the volume above top dead center. By dividing the combined swept and clearance volume by the clearance volume only, the compression ratio can be calculated.

For example, if the swept and clearance volume of a 632-ci, big-block Chevrolet is 1,380.34cc  and the clearance volume only is 86.69cc, the compression ratio would be stated as 15.92:1.

To find the engine’s displacement in cubic inches the following formula can be applied: 0.7854 x bore diameter x bore diameter x stroke length x the number of cylinders. To convert cubic inches to cubic centimeters, multiply by 16.39. Using a burette is the best method for measuring the clearance volume (chamber volume plus piston volume above top dead center).

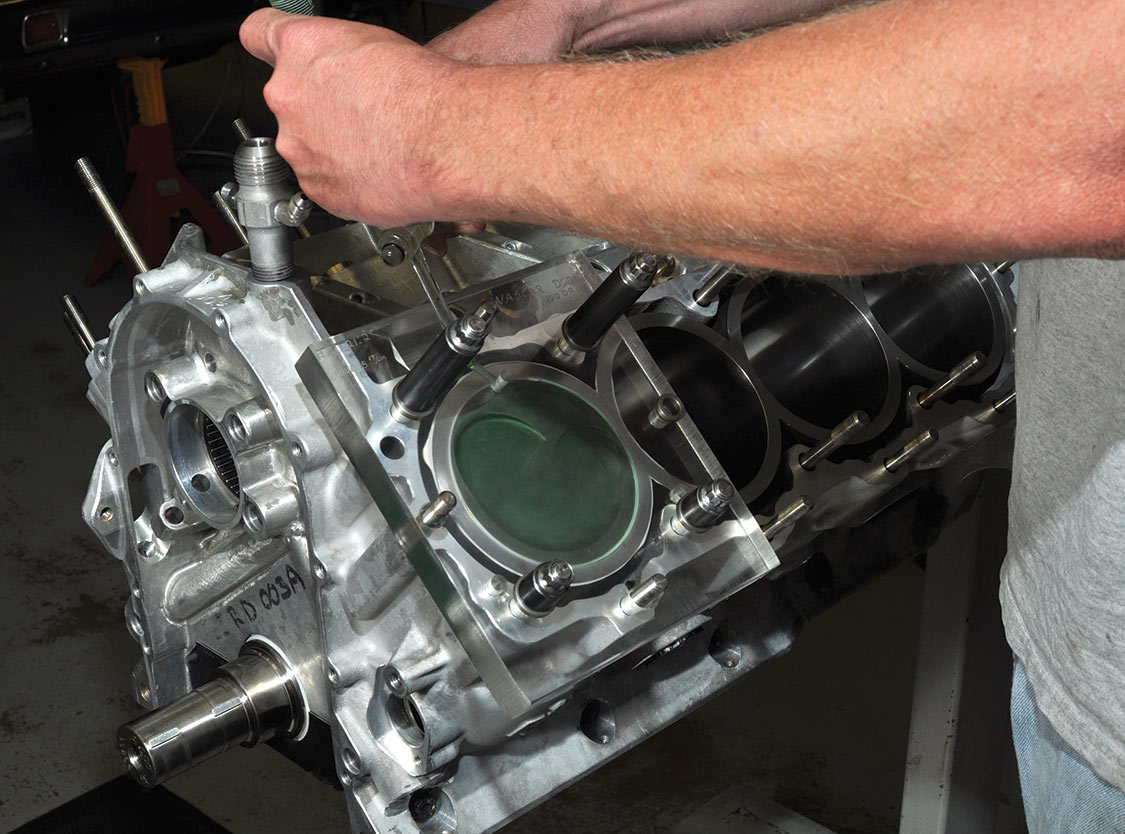

Apply a thin line of grease to seal the top edge of the piston to the cylinder and place a thick acrylic plate over the cylinder. The plate requires a ¼-inch or 3⁄8-inch-diameter hole drilled where the cylinder meets the piston.

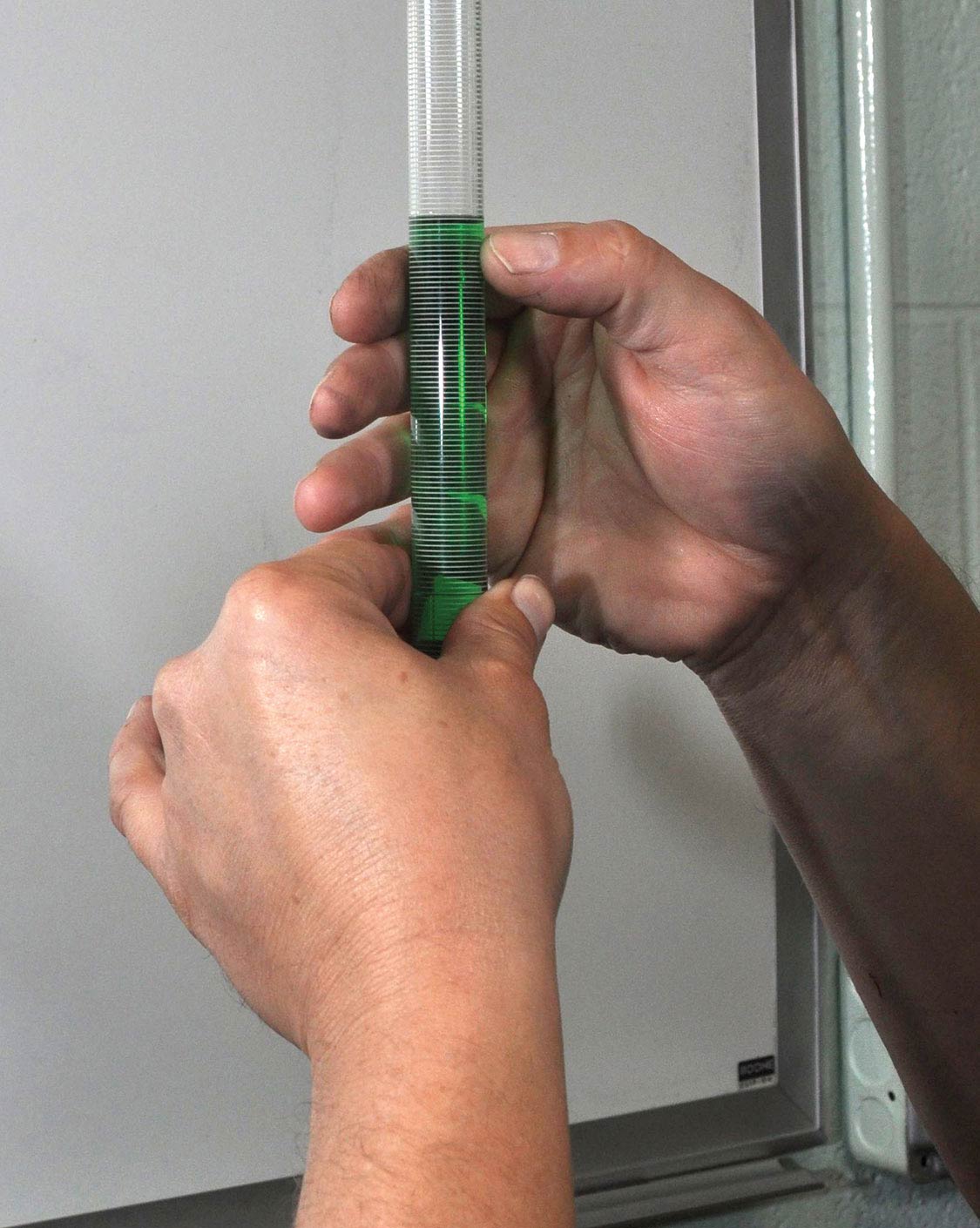

Fill a 100ml burette graduated in cc’s with a colored liquid to the zero mark (some builders use mineral spirits, others rubbing alcohol with a green tint). Then transfer the liquid to the piston cavity.

Compression ratios are often influenced by competition rule books. Also, engine efficiency is a deciding element in their composition. Higher compression ratios aren’t always those best calculated to succeed. When you over-compress the cylinder, you induce a pumping loss since it takes horsepower to squeeze the cylinder’s contents.

In addition, overly advanced ignition timing isn’t always recommended either. As Chuck Lawrence of Jon Kaase Racing Engines contends, “Earlier firing of the ignition causes the engine to work harder, as the piston is rising on its compression stroke it has to overcome the premature downward forces of the expanding gases.”

Calculating compression ratios accurately is important for at least three reasons. “First,” says Giebas, “pistons are often requested with compression ratios higher than are physically possible to provide. Second, some sanctioning bodies stipulate strict limitations on compression ratios, and if they are not calculated precisely, the racer could either squander power or unwittingly get caught cheating. Third, if the race engine is designed to meet strict specifications, including operating on a specific race fuel, having the compression ratio calculated properly is worth doing.”

It’s time to crunch the numbers. The burette delivered 16.8cc. Next, we measure the volume of the combustion chamber.

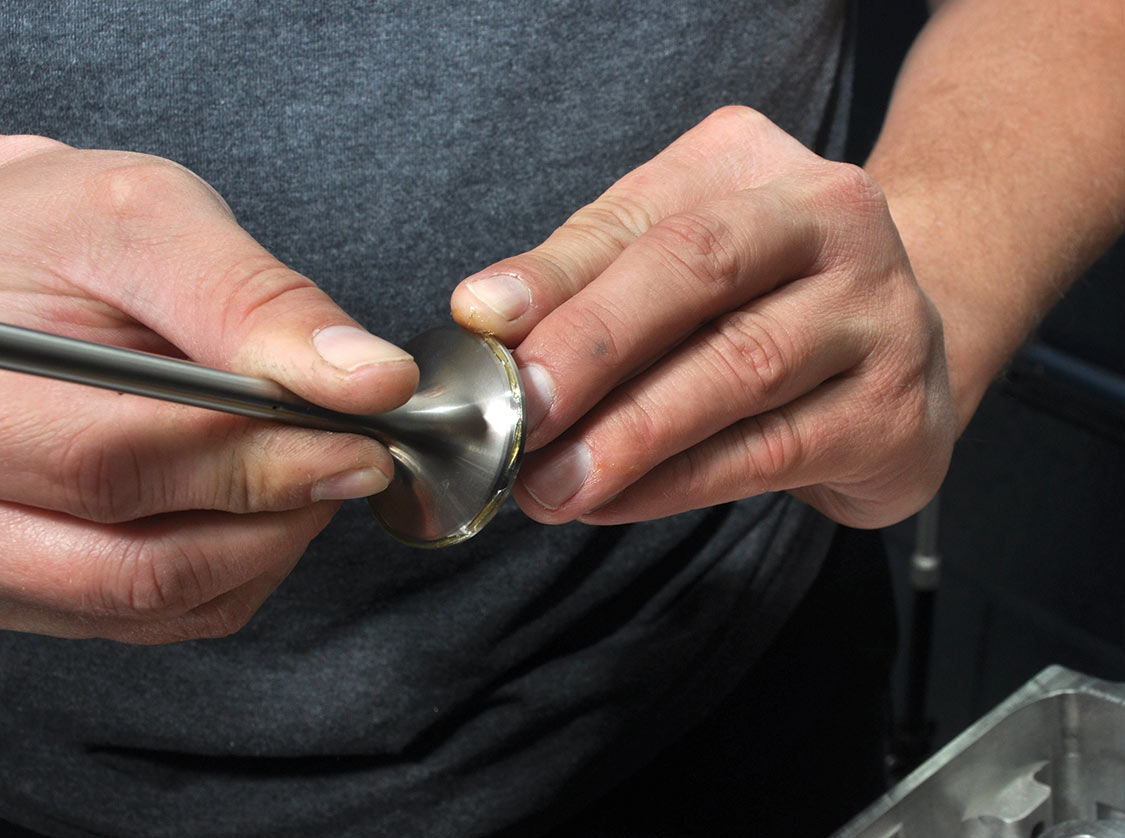

The first step in preparing to measure combustion chamber volume is to seal it by applying a layer of grease to the mating surfaces of the inlet and exhaust valves.

Yet crucial data is often omitted from custom piston information forms. The two most common difficulties are block deck height and chamber volume. Chamber volume is measured by inverting the cylinder head on the workbench (complete with two valves and a spark plug installed), placing a piece of thick acrylic plastic (with a ¼-inch or 3⁄8-inch-diameter hole in it) over the combustion chamber, filling a 100mm burette graduated in cc’s with a colored liquid and transferring the liquid to the combustion chamber. This measuring process is duplicated to establish the piston volume.

Block deck height is measured from the crankshaft centerline to the block deck, usually with some form of caliper. Knowing the exact block deck height is crucial because it is used to verify four vital measurements: half of the stroke dimension, rod length, compression height and the piston-to-deck dimension.

The piston-to-deck dimension is the measurement from the flat area around the piston perimeter to the deck surface. A decision must be made whether to place the piston at zero (flush with the block deck surface) or place it down the bore by a small amount. Most engine builders request the piston-to-deck dimension to be .005 inch or .010 inch down the bore. This small fudge factor gives them the ability to take a skim cut off the decks at a later date if needed.

Install the spark plug next.

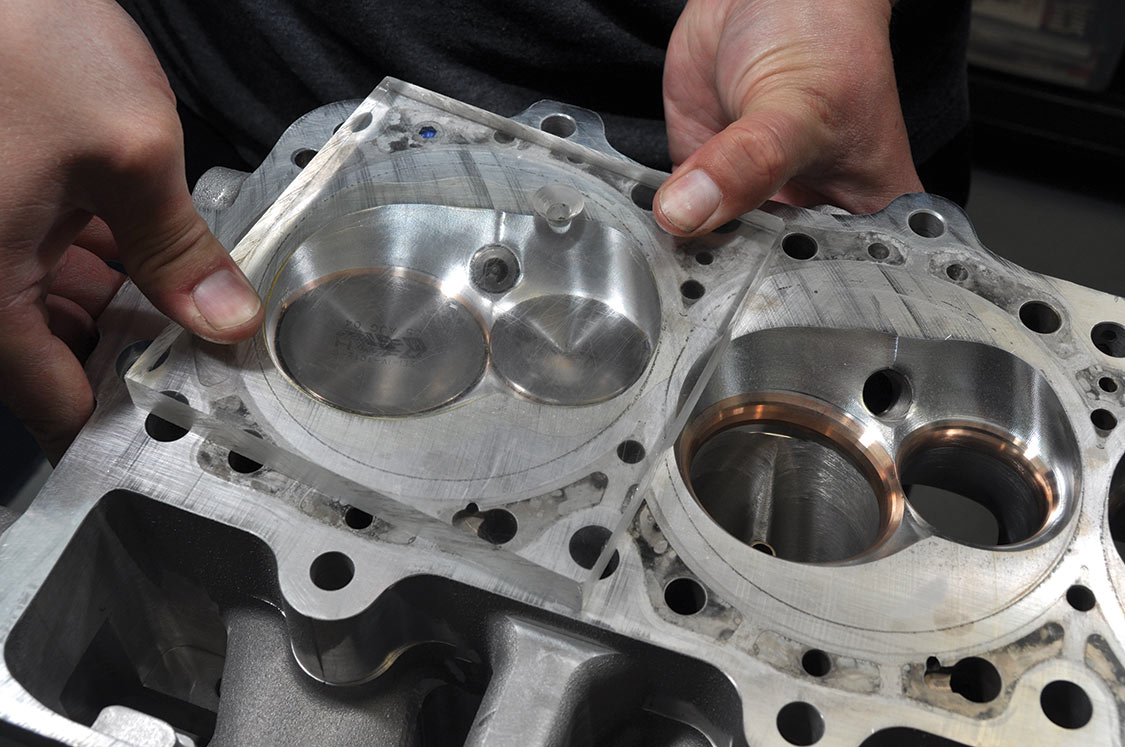

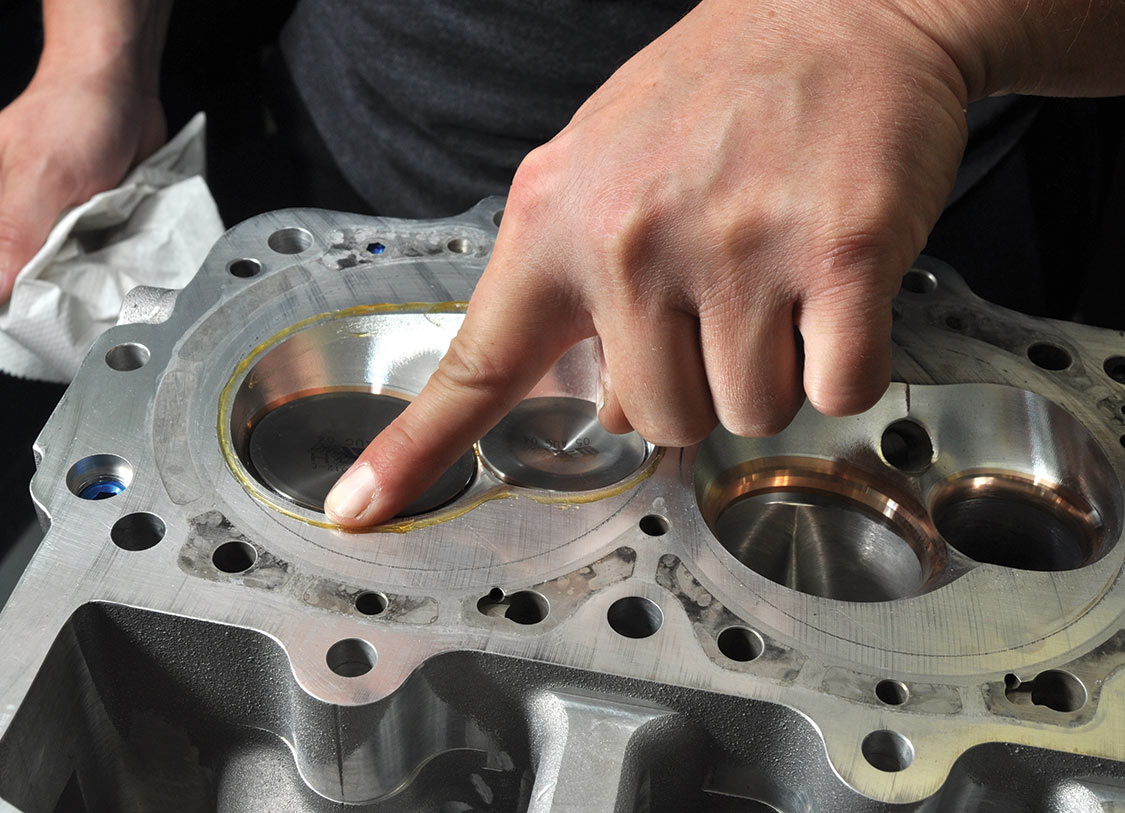

Before placing the acrylic top plate over the combustion chamber, a thin line of grease is applied. Take care not to apply too much, or it will enter the chamber to the detriment of the measurement.
Press the plate down onto the grease, and fill the burette with the liquid until it reaches the zero mark.

The compression height of the piston, also known as compression distance, is measured from the centerline of the piston pin to the flat area on the top of the piston. Once these dimensions are established accurately, the piston will be positioned at the precise height in the cylinder, and the compression ratio will be exactly as desired.

However, when some of these vital dimensions are omitted—perhaps the spaces are left blank or they contain the word “stock”—grief usually follows.

Let’s assume the racer has a desired compression ratio of 11.9:1 and believes the block deck height to be stock. Let’s further assume 10.720 inches represents stock. But at sometime in the past, and unknown to the present owner, the block visited a machine shop where the decks were “cleaned up” and the height is, in fact, 10.700 inches and not 10.720 inches. As a result, the .020-inch difference in compression distance will cause the piston to sit higher in the bore, resulting in a much higher and unwanted compression ratio of around 12.5:1.

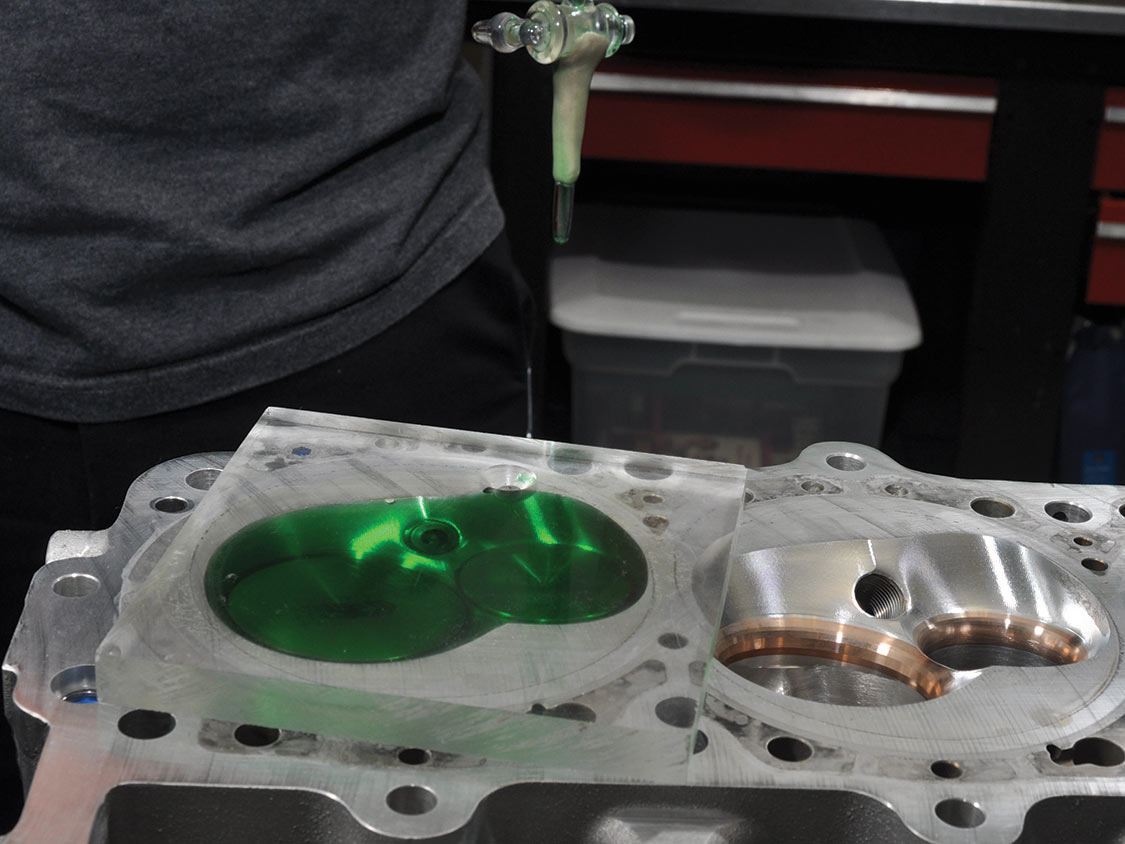

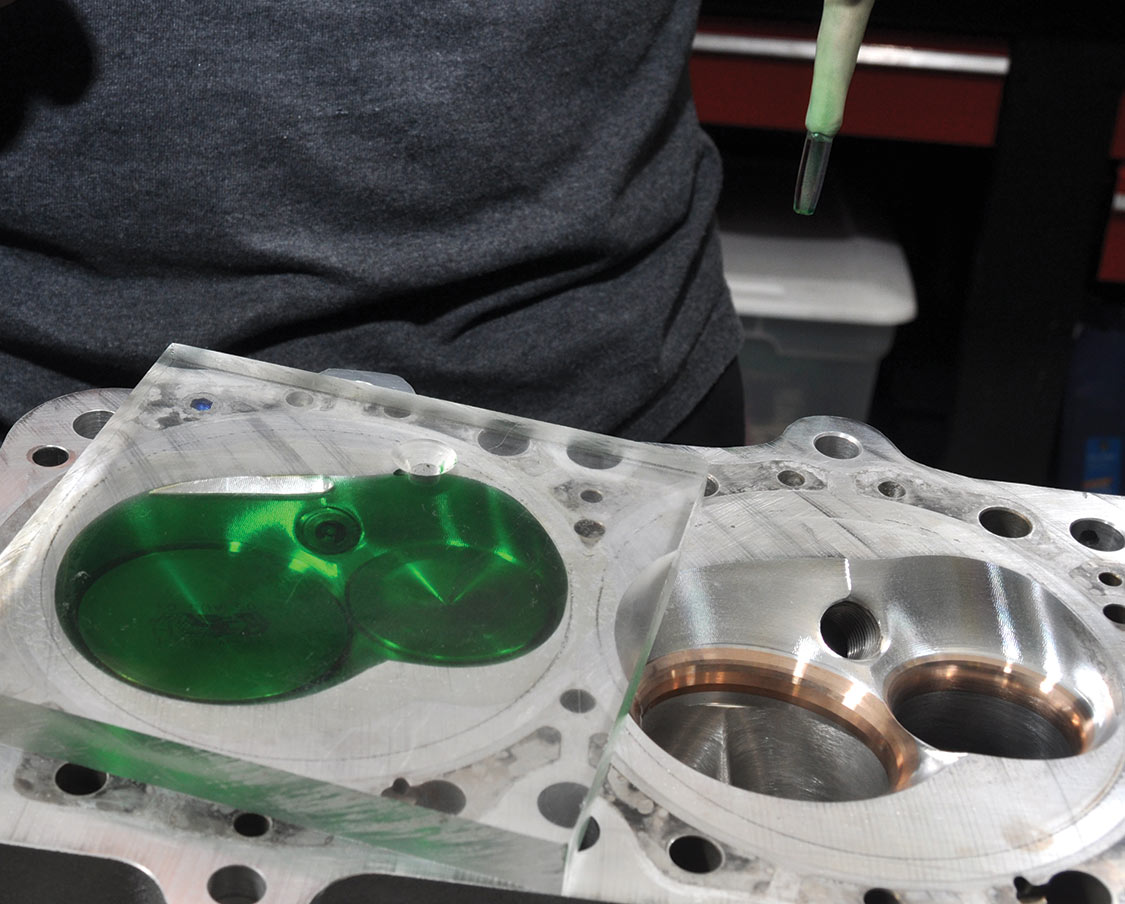

Dispense the colored liquid from the burette into the chamber. If an air bubble occurs, tilt the cylinder head to bleed the air through the fill hole.
This is the condition for which we’re aiming.

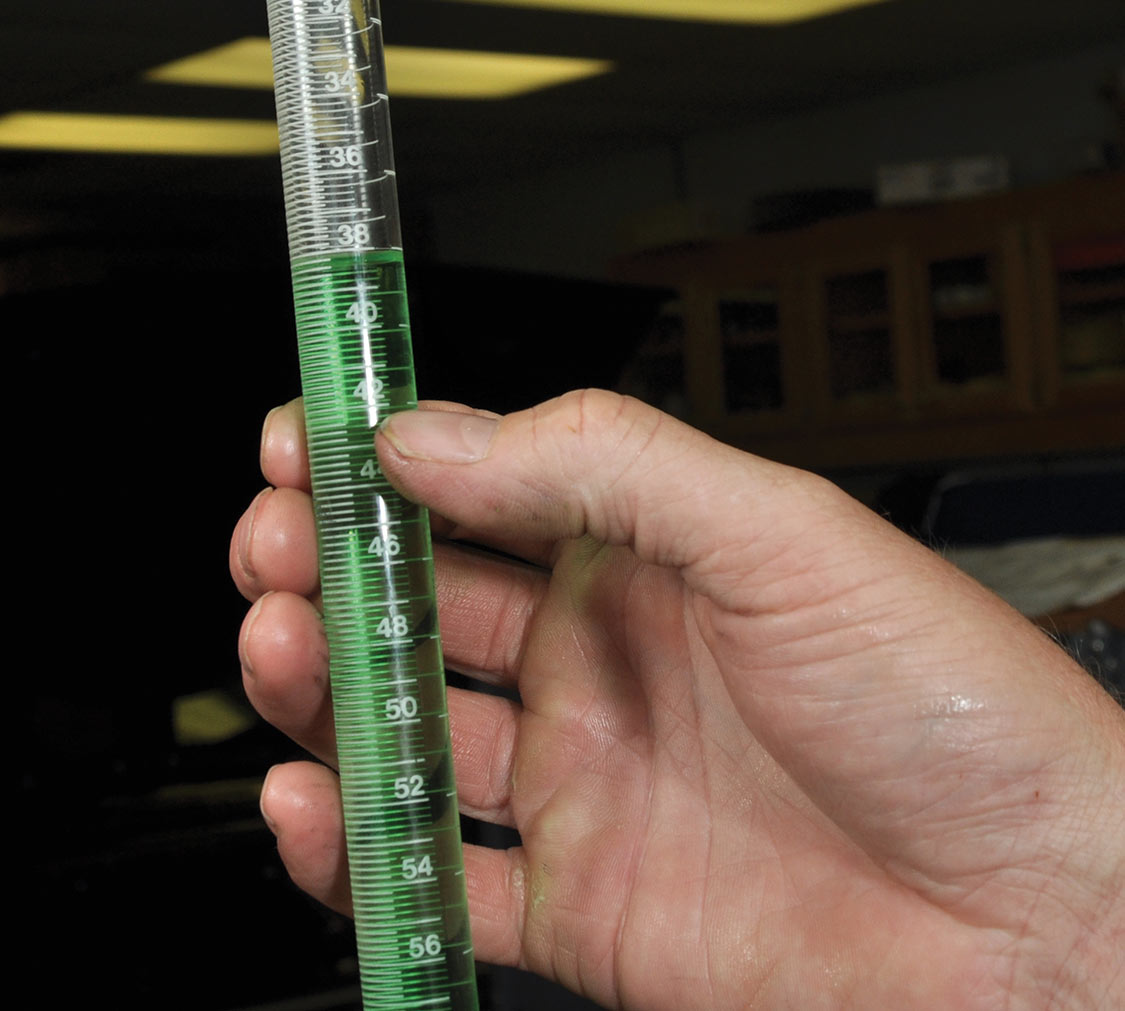

On reading the burette, we learned our combustion chamber volume is 51.7cc.  This value plus 1cc to account for the volume around the top ring and the piston volume (in our case 16.8 plus) are the figures the piston supplier needs.

Savvy piston makers with experience in different race engine categories will tell you that compression is a most intriguing topic, and that having more is not always to your advantage. “When better cylinder head and induction manifold designs prevail,” says Giebas, “less compression is needed because they accomplish better cylinder filling. Therefore, it compresses more air in a given area, but if the cylinder head and the induction system are less efficient, more compression is needed because there is less air in the cylinder.”

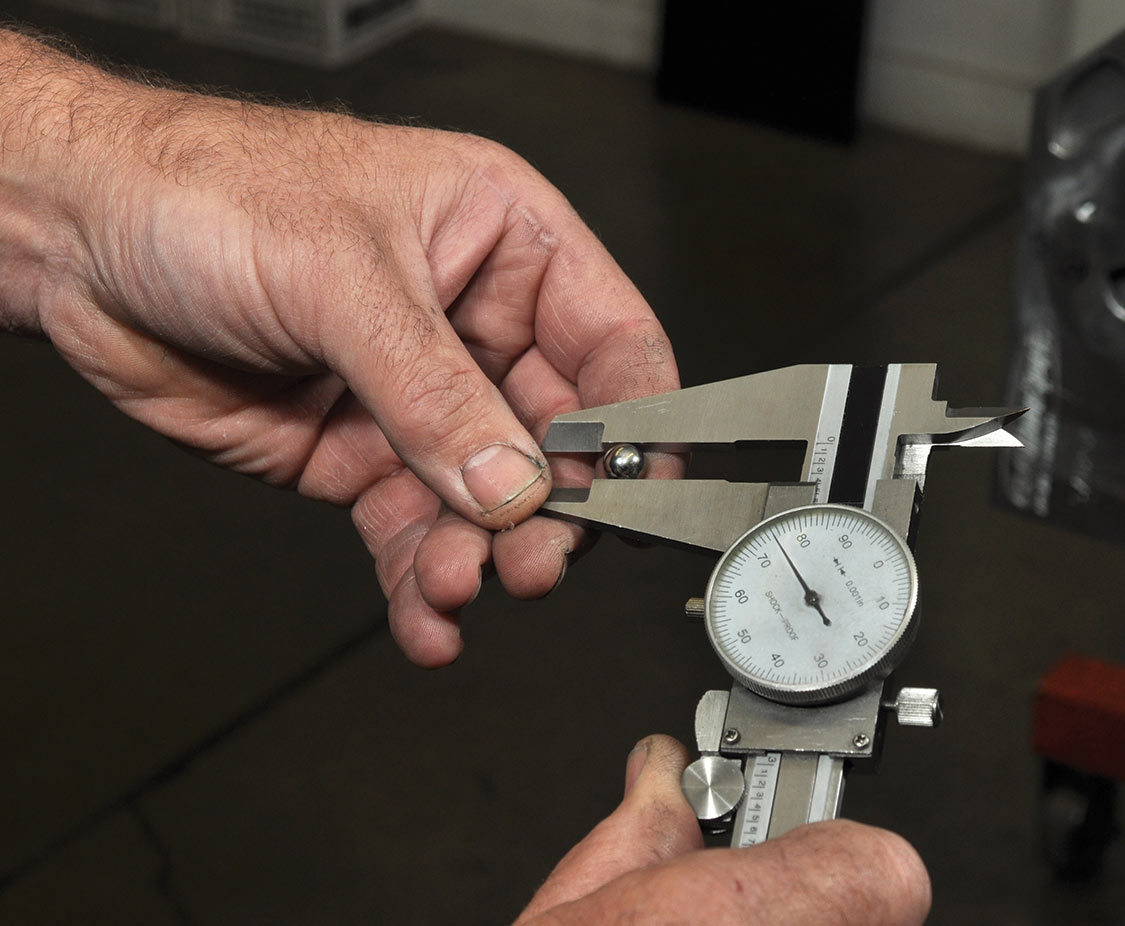

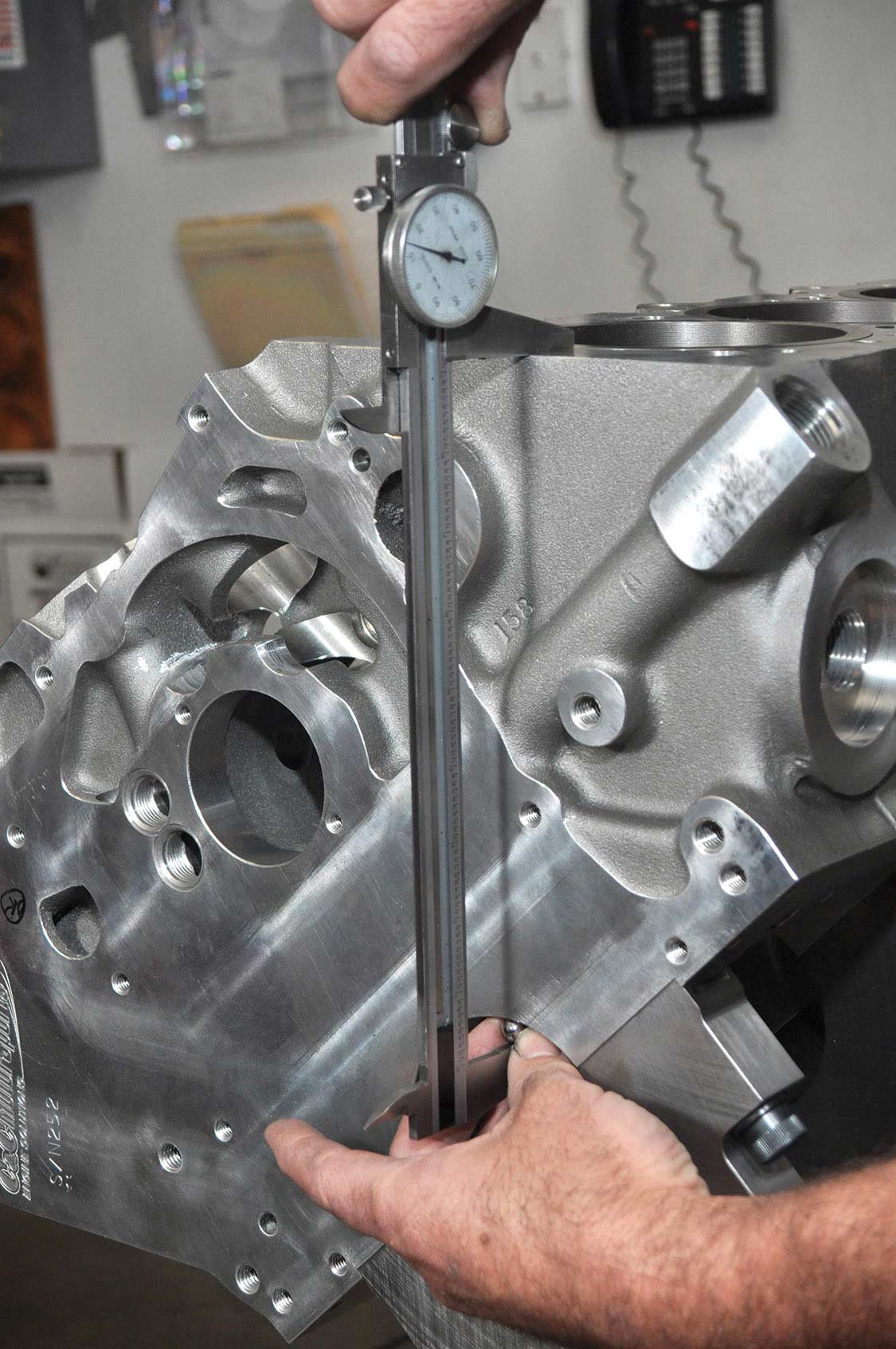

Block deck height is the measurement from the crankshaft centerline to the block deck. Usually this measurement is captured by some form of dial gauge caliper. Here, Chuck Lawrence of Jon Kaase Racing Engines uses a steel ball as an aid to obtain an accurate reading.
Then he deducts the diameter of the ball and adds half the crank main’s journal diameter. On a Kaase Boss Nine engine, the diameter of the main’s journal is 3.193 inches; therefore, to establish his block deck height, he takes his dial gauge measurement, subtracts the steel ball measurement and adds 1.5965 inches.
