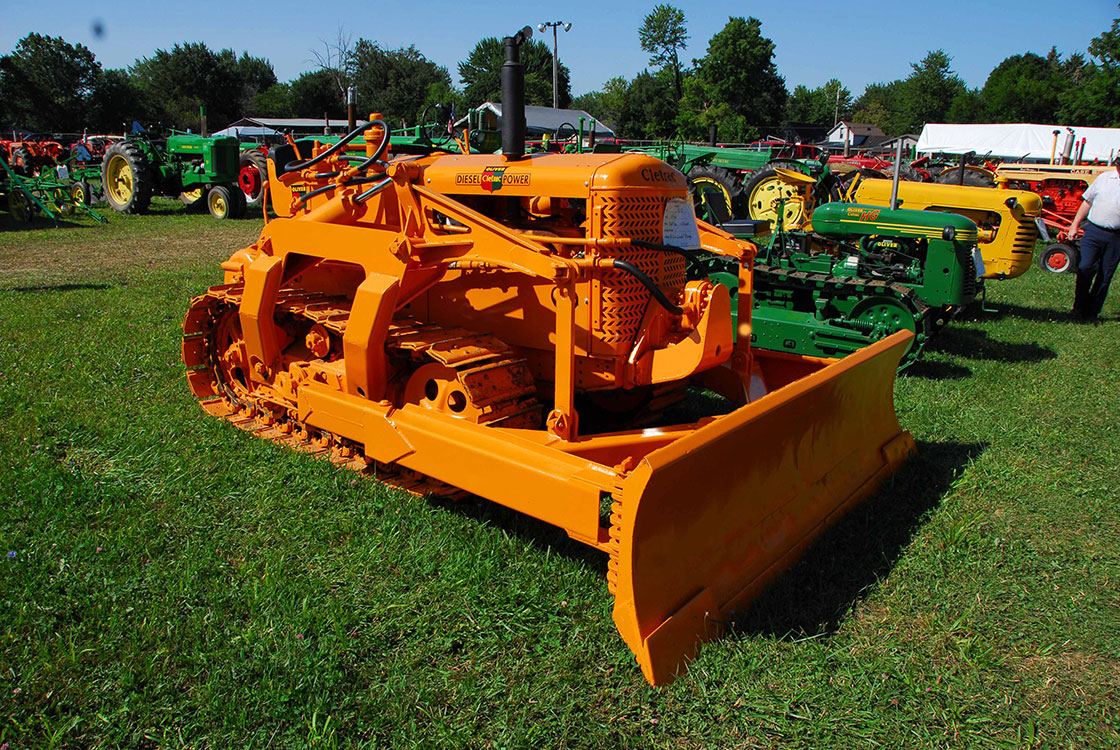

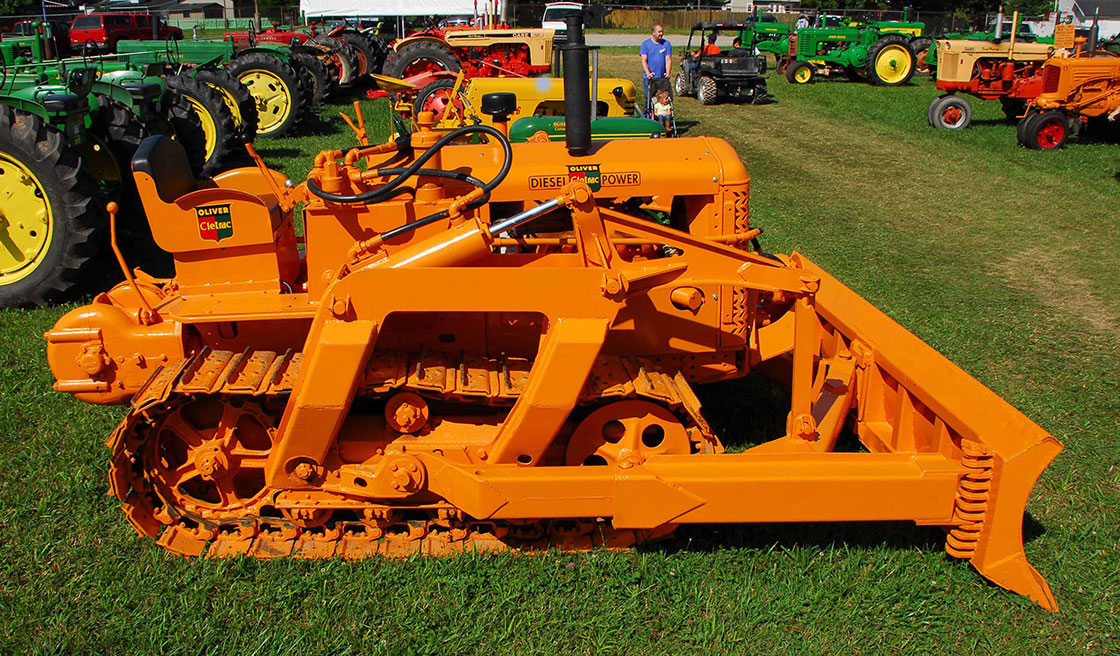

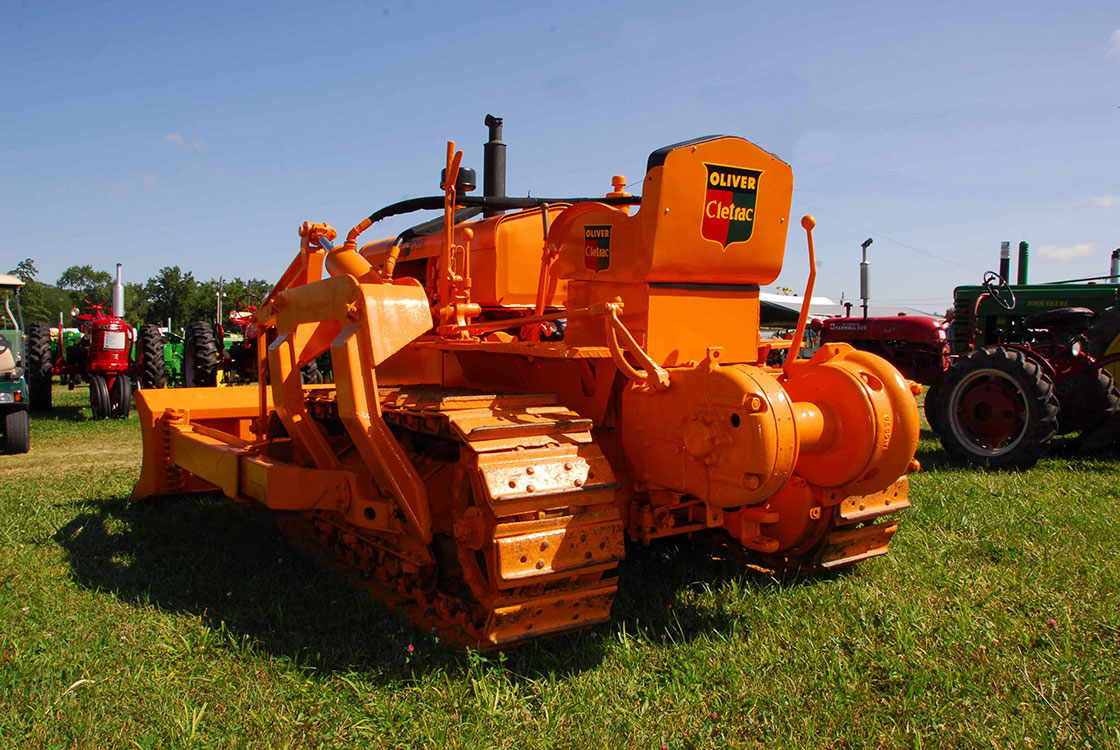

1946 OLIVER CLETRAC BD

Motortopia Motortopia , 12th July, 2022

Owner/Builder

Specs

    ENGINE

    • 6-cylinder IDI diesel
    • Hercules DJXC

    DISPLACEMENT

    • 298 ci

    BORE & STROKE

    • 3.75 x 4.5 inches

    FLYWHEEL HORSEPOWER

    • 83 hp @ 2,600 rpm

    FLYWHEEL TORQUE

    • 208 lb-ft @ 1,500 rpm

    *RATED BELT POWER

    • 48.09 hp @ 1,400 rpm

    *RATED DRAWBAR POWER

    • 38.05 hp @ 1,400 rpm

    COMPRESSION RATIO

    • 14.5:1

    TRANSMISSION

    • 6-speed (4 forward, two reverse)

    TREAD GAUGE

    • 44 in. (52-in. optional Hillside model)

    TRACK WIDTH

    • 14 in. (16-in. optional Hillside model)

    GROUND PRESSURE

    • 5 psi

    *FUEL CONSUMPTION

    • 3.46 gph @ full power

    *DRAWBAR PULL

    • 7,530 lbs. @ 1,400

    WEIGHT

    • 9,400 lbs. (bare unit)

    FUEL CAPACITY

    • 23 gal.

    *TOP SPEED

    • 5.4 mph
    *As rated by Nebraska Tractor Test 325
