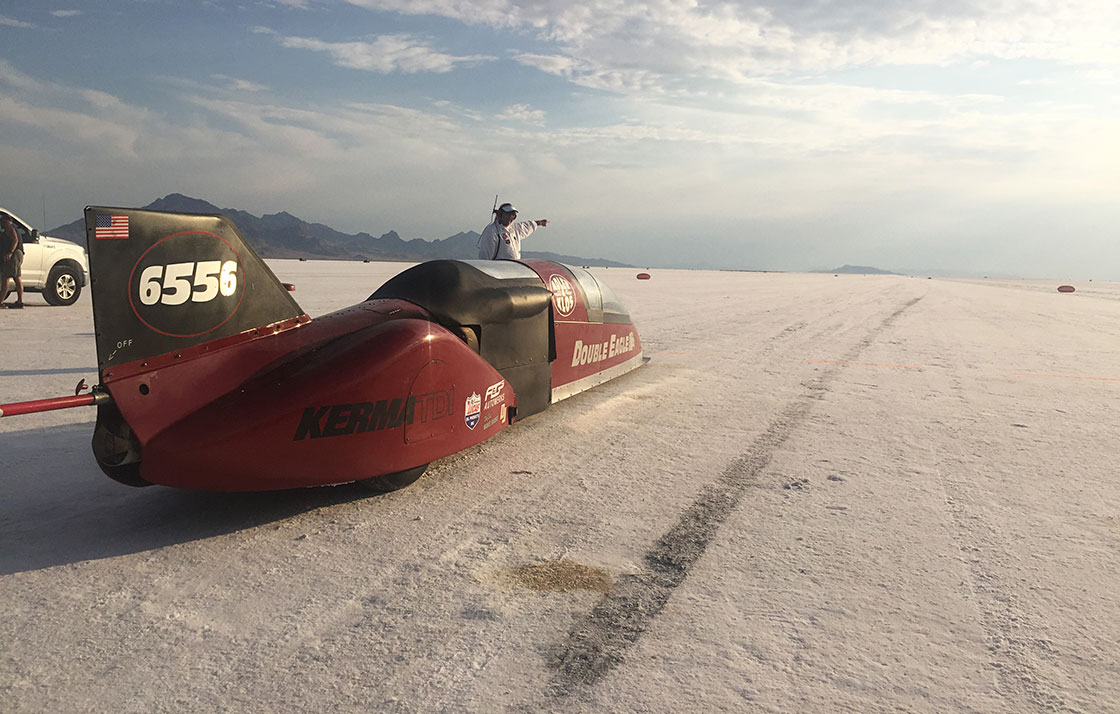

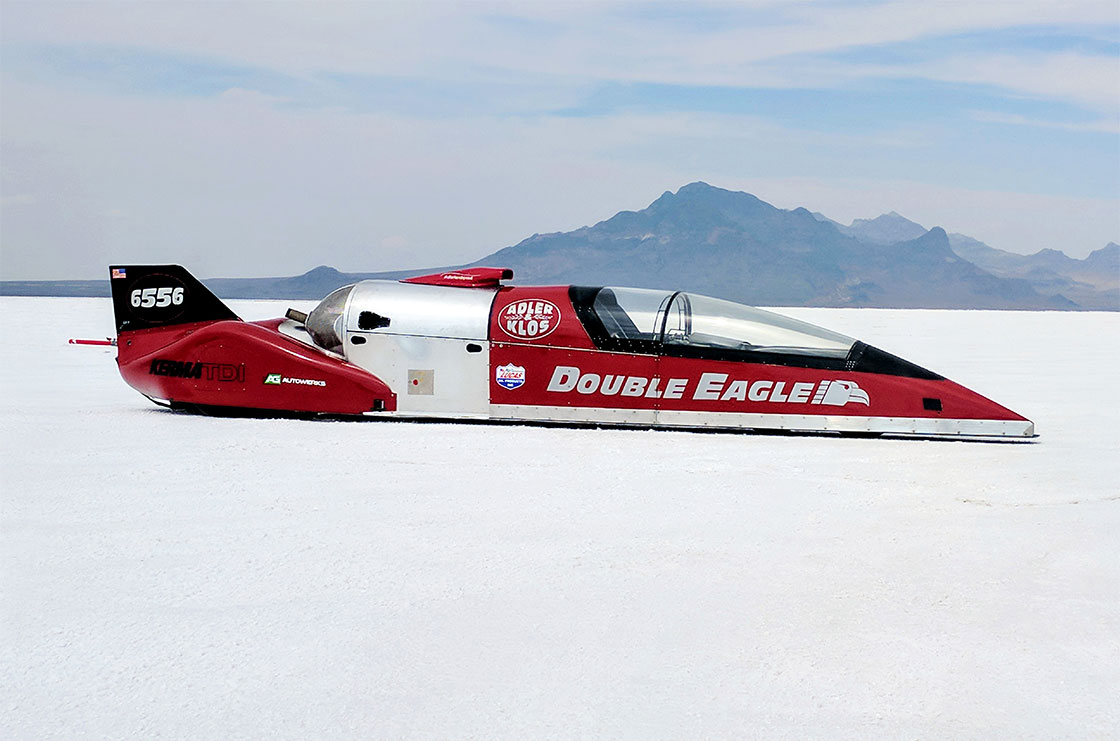

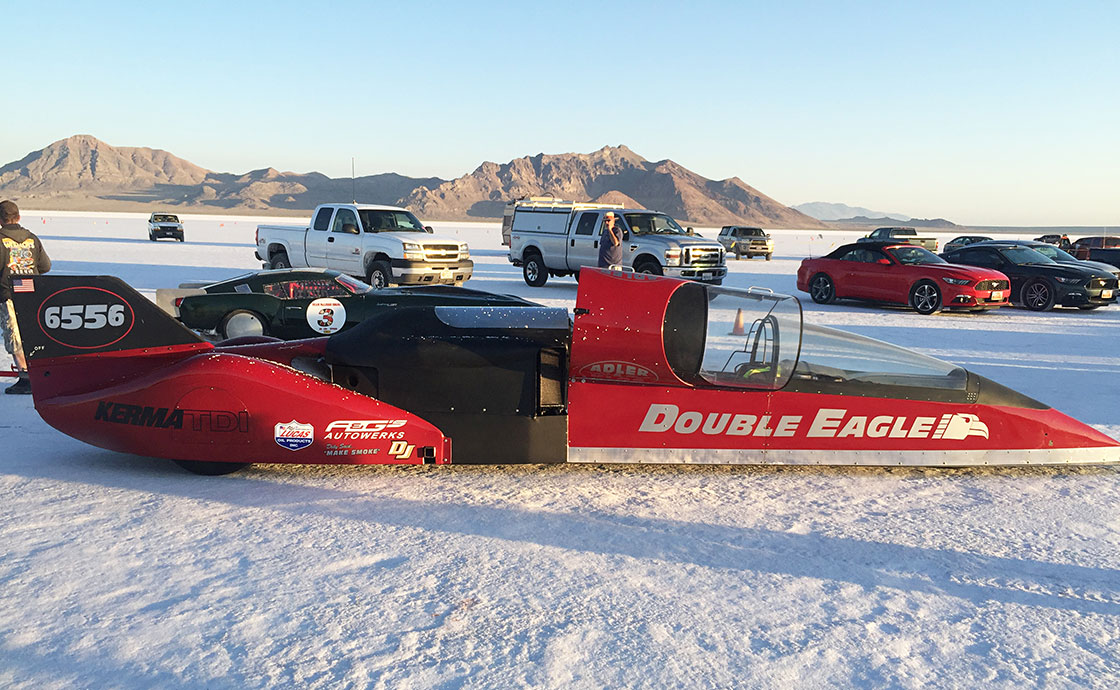

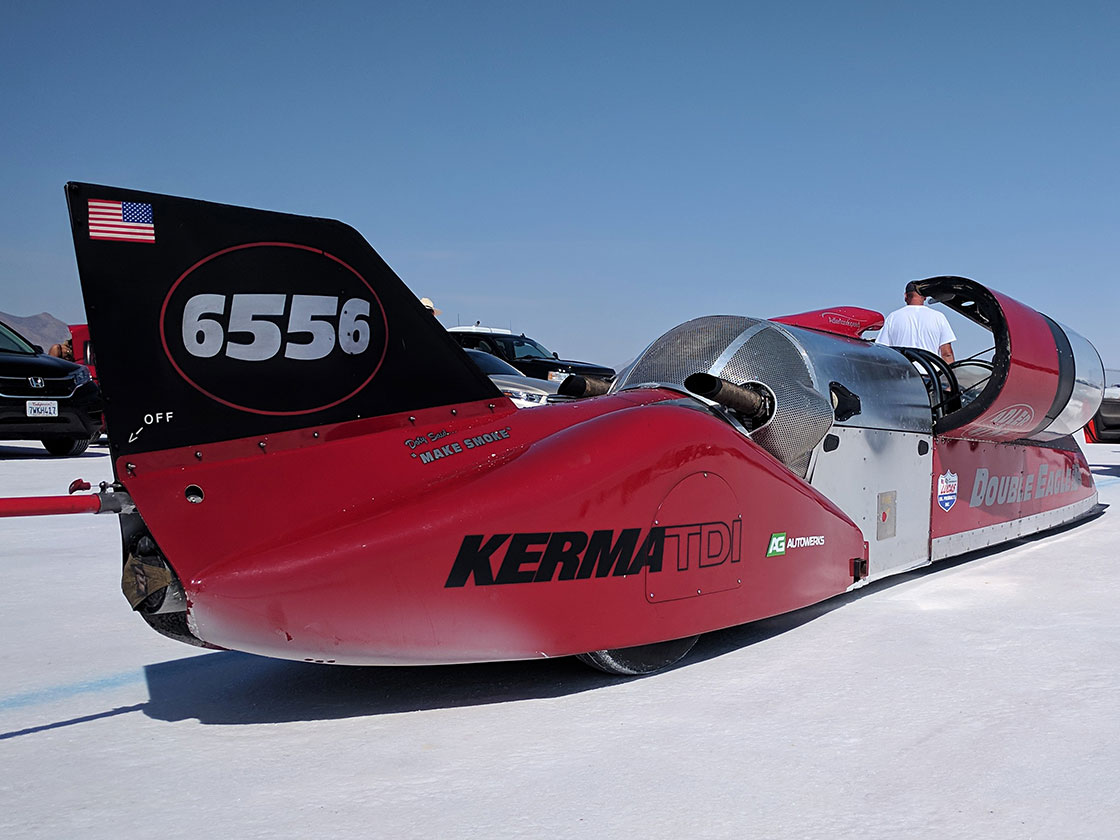

Adler Land Speed Streamliner (“Double Eagle”)

Motortopia Staff . 24th May, 2022
0 Likes
  • Adler Land Speed Streamliner (“Double Eagle”)
  • Adler Land Speed Streamliner (“Double Eagle”)
  • Adler Land Speed Streamliner (“Double Eagle”)
  • Adler Land Speed Streamliner (“Double Eagle”)
  • Adler Land Speed Streamliner (“Double Eagle”)

Vehicle Details

Owner/ Builder

Doug and Davidson Adler

Vehicles Highlights

Engine:

ODOMETER

  • 147,000 miles (engine/transmission)

ENGINE

  • Volkswagen 5.0L V-10 TDI

FUEL

  • Fratelli Bosio Race 783 unit injectors with 163-percent over nozzles

AIR

  • Apex Performance Turbochargers’ twin fixed geometry
  • internally wastegated BorgWarner K16 turbos with 44mm (inducer) titanium compressor wheels and 55/46mm turbine wheels
  • dual water-to-air intercoolers (one per turbo)

EXHAUST

  • Custom with a high-flow manifold feeding each turbo

ELECTRONICS

  • Factory Bosch EDC-16 ECM

TUNING

  • Kerma TDI custom calibration via Q Pro tuner

HORSEPOWER

  • 390 hp (est.)

Manufacturing year: 1937

Transmission:

Exterior Color:

Interior Color:

Specification

.

ODOMETER

  • 147,000 miles (engine/transmission)

ENGINE

  • Volkswagen 5.0L V-10 TDI

FUEL

  • Fratelli Bosio Race 783 unit injectors with 163-percent over nozzles

AIR

  • Apex Performance Turbochargers’ twin fixed geometry
  • internally wastegated BorgWarner K16 turbos with 44mm (inducer) titanium compressor wheels and 55/46mm turbine wheels
  • dual water-to-air intercoolers (one per turbo)

EXHAUST

  • Custom with a high-flow manifold feeding each turbo

ELECTRONICS

  • Factory Bosch EDC-16 ECM

TUNING

  • Kerma TDI custom calibration via Q Pro tuner

HORSEPOWER

  • 390 hp (est.)

.

TRANSMISSION

  • Factory Aisin six-speed automatic and TCM
  • custom 18-inch driveshaft to rear quick-change axle

TORQUE

  • 795 lb-ft (chassis dyno)

TIRES

  • 22x4x17 Goodyear Eagles (front)
  • 28x5x15 Goodyear Eagles (rear)
  • rated to 300+ mph

AXLES

  • Speedway Engineering custom-narrowed quick change (rear)

SUSPENSION/STEERING

  • Traditional four-link (rear) located via panhard bar
  • adjustable Bilstein coil overs
  • rigid custom anti-roll bar
  • adjustable trailing arm (front) with inline steering controlled by Schroeder steering box and bell crank.

SAFETY/BRAKING

  • DJ Safety parachute (to 150 mph)
  • Wilwood brakes with Dynalite calipers
